Augmented reality (AR) is a live direct or indirect view of a physical, real-world environment whose elements are augmented (or supplemented) by computer-generated sensory input such as sound, video, graphics or GPS data. It is related to a more general concept called mediated reality, in which a view of reality is modified (possibly even diminished rather than augmented) by a computer. As a result, the technology functions by enhancing one’s current perception of reality. By contrast, virtual reality replaces the real world with a simulated one. Augmentation is conventionally in real-time and in semantic context with environmental elements, such as sports scores on TV during a match. With the help of advanced AR technology (e.g. adding computer vision and object recognition) the information about the surrounding real world of the user becomes interactive and digitally manipulable. Artificial information about the environment and its objects can be overlaid on the real world.
Technology
Hardware
Hardware components for augmented reality are: processor, display, sensors and input devices. Modern mobile computing devices like smartphones and tablet computers contain these elements which often include a camera and MEMS sensors such as accelerometer, GPS, and solid state compass, making them suitable AR platforms.
Display
Various technologies are used in Augmented Reality rendering including optical projection systems, monitors, hand held devices, and display systems worn on one's person.
Head-mounted
A head-mounted display (HMD) is a display device paired to a headset such as a harness or helmet. HMDs place images of both the physical world and virtual objects over the user's field of view. Modern HMDs often employ sensors for six degrees of freedom monitoring that allow the system to align virtual information to the physical world and adjust accordingly with the user's head movements. HMDs can provide users immersive, mobile and collaborative AR experiences.
Eyeglasses
AR displays can be rendered on devices resembling eyeglasses. Versions include eyewear that employ cameras to intercept the real world view and re-display its augmented view through the eye pieces and devices in which the AR imagery is projected through or reflected off the surfaces of the eyewear lens pieces.
HUD
Devices that can augment only part of ones field of view like Google Glass is are intended for an AR experience. After the debut of Google Glass many other HUD devices emerged as alternatives.
CrowdOptic, an existing app for smartphones, applies algorithms and triangulation techniques to photo metadata including GPS position, compass heading, and a time stamp to arrive at a relative significance value for photo objects. CrowdOptic technology can be used by Google Glass users to learn where to look at a given point in time.
Contact lenses
Contact lenses that display AR imaging are in development. These bionic contact lenses might contain the elements for display embedded into the lens including integrated circuitry, LEDs and an antenna for wireless communication. Another version of contact lenses, in development for the U.S. Military, is designed to function with AR spectacles, allowing soldiers to focus on close-to-the-eye AR images on the spectacles and distant real world objects at the same time. In 2013, at the Augmented World Expo Conference, a futuristic video named Sight featuring the potential of having augmented reality through contact lenses received the best futuristic augmented reality video award.
Virtual retinal display
A virtual retinal display (VRD) is a personal display device under development at the University of Washington's Human Interface Technology Laboratory. With this technology, a display is scanned directly onto the retina of a viewer's eye. The viewer sees what appears to be a conventional display floating in space in front of them.
EyeTap
The EyeTap (also known as Generation-2 Glass) captures rays of light that would otherwise pass through the center of a lens of an eye of the wearer, and substitutes synthetic computer-controlled light for each ray of real light. The Generation-4 Glass (Laser EyeTap) is similar to the VRD (i.e. it uses a computer controlled laser light source) except that it also has infinite depth of focus and causes the eye itself to, in effect, function as both a camera and a display, by way of exact alignment with the eye, and resynthesis (in laser light) of rays of light entering the eye.
Handheld

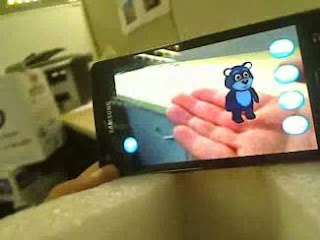

Handheld displays employ a small display that fits in a user's hand. All handheld AR solutions to date opt for video see-through. Initially handheld AR employed fiduciary markers, and later GPS units and MEMS sensors such as digital compasses and six degrees of freedom accelerometerâ€"gyroscope. Today SLAM markerless trackers such as PTAM are starting to come into use. Handheld display AR promises to be the first commercial success for AR technologies. The two main advantages of handheld AR is the portable nature of handheld devices and ubiquitous nature of camera phones. The disadvantages are the physical constraints of the user having to hold the handheld device out in front of them at all times as well as distorting effect of classically wide-angled mobile phone cameras when compared to the real world as viewed through the eye.
Spatial
Spatial Augmented Reality (SAR) augments real world objects and scenes without the use of special displays such as monitors, head mounted displays or hand-held devices. SAR makes use of digital projectors to display graphical information onto physical objects. The key difference in SAR is that the display is separated from the users of the system. Because the displays are not associated with each user, SAR scales naturally up to groups of users, thus allowing for collocated collaboration between users.
Examples include shader lamps, mobile projectors, virtual tables, and smart projectors. Shader lamps mimic and augment reality by projecting imagery onto neutral objects, providing the opportunity to enhance the object’s appearance with materials of a simple unit- a projector, camera, and sensor.
Other applications include table and wall projections. One innovation, the Extended Virtual Table, separates the virtual from the real by including beam-splitter mirrors attached to the ceiling at an adjustable angle. Virtual showcases, which employ beam-splitter mirrors together with multiple graphics displays, provide an interactive means of simultaneously engaging with the virtual and the real. Many more implementations and configurations make spatial augmented reality display an increasingly attractive interactive alternative.
A SAR system can display on any number of surfaces of an indoor setting at once. SAR supports both a graphical visualisation and passive haptic sensation for the end users. Users are able to touch physical objects in a process that provides passive haptic sensation.
Tracking
Modern mobile augmented reality systems use one or more of the following tracking technologies: digital cameras and/or other optical sensors, accelerometers, GPS, gyroscopes, solid state compasses, RFID and wireless sensors. These technologies offer varying levels of accuracy and precision. Most important is the position and orientation of the user's head. Tracking the user's hand(s) or a handheld input device can provide a 6DOF interaction technique.
Input devices
Techniques include speech recognition systems that translate a user's spoken words into computer instructions and gesture recognition systems that can interpret a user's body movements by visual detection or from sensors embedded in a peripheral device such as a wand, stylus, pointer, glove or other body wear.
Computer
The computer analyzes the sensed visual and other data to synthesize and position augmentations.
Software and algorithms
A key measure of AR systems is how realistically they integrate augmentations with the real world. The software must derive real world coordinates, independent from the camera, from camera images. That process is called image registration which uses different methods of computer vision, mostly related to video tracking. Many computer vision methods of augmented reality are inherited from visual odometry. Usually those methods consist of two parts.
First detect interest points, or fiduciary markers, or optical flow in the camera images. First stage can use feature detection methods like corner detection, blob detection, edge detection or thresholding and/or other image processing methods. The second stage restores a real world coordinate system from the data obtained in the first stage. Some methods assume objects with known geometry (or fiduciary markers) present in the scene. In some of those cases the scene 3D structure should be precalculated beforehand. If part of the scene is unknown simultaneous localization and mapping (SLAM) can map relative positions. If no information about scene geometry is available, structure from motion methods like bundle adjustment are used. Mathematical methods used in the second stage include projective (epipolar) geometry, geometric algebra, rotation representation with exponential map, kalman and particle filters, nonlinear optimization, robust statistics.
Augmented Reality Markup Language (ARML) is a data standard developed within the Open Geospatial Consortium (OGC), which consists of an XML grammar to describe the location and appearance of virtual objects in the scene, as well as ECMAScript bindings to allow dynamic access to properties of virtual objects.
To enable rapid development of Augmented Reality Application, some software development kits (SDK) have emerged. A few SDK such as CloudRidAR leverage cloud computing for performance improvement. Some of the well known AR SDKs are offered by Metaio, Vuforia, Mobinett AR. Wikitude and Layar.
Applications
Augmented reality has many applications. First used for military, industrial, and medical applications, it has also been applied to commercial and entertainment areas.
Archaeology
AR can be used to aid archaeological research, by augmenting archaeological features onto the modern landscape, enabling archaeologists to formulate conclusions about site placement and configuration.
Another application given to AR in this field is the possibility for users to rebuild ruins, buildings, or even landscapes as they formerly existed.
Architecture
AR can aid in visualizing building projects. Computer-generated images of a structure can be superimposed into a real life local view of a property before the physical building is constructed there. AR can also be employed within an architect's work space, rendering into their view animated 3D visualizations of their 2D drawings. Architecture sight-seeing can be enhanced with AR applications allowing users viewing a building's exterior to virtually see through its walls, viewing its interior objects and layout.
Art
AR technology has helped disabled individuals create art by using eye tracking to translate a user's eye movements into drawings on a screen. An item such as a commemorative coin can be designed so that when scanned by an AR-enabled device it displays additional objects and layers of information that were not visible in a real world view of it. In 2013, L'Oreal used CrowdOptic technology to create an augmented reality at the seventh annual Luminato Festival in Toronto, Canada.
Commerce
AR can enhance product previews such as allowing a customer to view what's inside a product's packaging without opening it. AR can also be used as an aid in selecting products from a catalog or through a kiosk. Scanned images of products can activate views of additional content such as customization options and additional images of the product in its use. AR is used to integrate print and video marketing. Printed marketing material can be designed with certain "trigger" images that, when scanned by an AR enabled device using image recognition, activate a video version of the promotional material. A major difference between Augmented Reality and straight forward image recognition is that you can overlay multiple media at the same time in the view screen, such as social media share buttons, in-page video even audio and 3D objects. Traditional print only publications are using Augmented Reality to connect many different types of media.
Construction
With the continual improvements to GPS accuracy, businesses are able to use augmented reality to visualize georeferenced models of construction sites, underground structures, cables and pipes using mobile devices. Following the Christchurch earthquake, the University of Canterbury released, CityViewAR, which enabled city planners and engineers to visualize buildings that were destroyed in the earthquake. Not only did this provide planners with tools to reference the previous cityscape, but it also served as a reminder to the magnitude of the devastation caused, as entire buildings were demolished.
Education
Augmented reality applications can complement a standard curriculum. Text, graphics, video and audio can be superimposed into a student’s real time environment. Textbooks, flashcards and other educational reading material can contain embedded “markers†that, when scanned by an AR device, produce supplementary information to the student rendered in a multimedia format. Students can participate interactively with computer generated simulations of historical events, exploring and learning details of each significant area of the event site. On higher education, there are some applications that can be used. For instance, Construct3D, a Studierstube system, allows students to learn mechanical engineering concepts, math or geometry. This is an active learning process in which students learn to learn with technology. AR can aid students in understanding chemistry by allowing them to visualize the spatial structure of a molecule and interact with a virtual model of it that appears, in a camera image, positioned at a marker held in their hand. It can also enable students of physiology to visualize different systems of the human body in three dimensions. Augmented reality technology also permits learning via remote collaboration, in which students and instructors not at the same physical location can share a common virtual learning environment populated by virtual objects and learning materials and interact with another within that setting.
This resource could also take of advantage in Primary School. Students learn through experiences, besides when children are so young, they need see to learn. For instance, they can learn new knowledge about Astronomy, which is usually difficult to acquire to them, with this device children can understand better The Solar System because they would see it in 3D; even children under 6 years old could understand it following that method. In addition, learners could change the pictures of their Science Book for using this resource. On the other hand to teach bones or organs, they could also stick one paper on their body and that paper contains an embedded “markers†about a bones or an organ that existed under the paper, and the teacher would only need to press a button when children would change the place of the paper, in this way, we would use the same embedded “markers†in order to teach another part of the body.
Emergency Management / Search and Rescue
Augmented reality systems are used in public safety situations - from super storms to suspects at large. Two interesting articles from Emergency Management magazine discuss the power of the technology for emergency management. The first is "Augmented Reality--Emerging Technology for Emergency Management" by Gerald Baron. Per Adam Crowe: "Technologies like augmented reality (ex: Google Glass) and the growing expectation of the public will continue to force professional emergency managers to radically shift when, where, and how technology is deployed before, during, and after disasters.".
Another example, a search aircraft is looking for a lost hiker in rugged mountain terrain. Augmented reality systems provide aerial camera operators with a geographic awareness of forest road names and locations blended with the camera video. As a result, the camera operator is better able to search for the hiker knowing the geographic context of the camera image. Once found, the operator can more efficiently direct rescuers to the hiker's location.
Everyday
Since the 1970s and early 1980s, Steve Mann has been developing technologies meant for everyday use i.e. "horizontal" across all applications rather than a specific "vertical" market. Examples include Mann's "EyeTap Digital Eye Glass", a general-purpose seeing aid that does dynamic-range management (HDR vision) and overlays, underlays, simultaneous augmentation and diminishment (e.g. diminishing the electric arc while looking at a welding torch).
Gaming
Augmented reality allows gamers to experience digital game play in a real world environment. In the last 10 years there has been a lot of improvements of technology, resulting in better movement detection and the possibility for the Wii to exist, but also direct detection of the player's movements.
Industrial design
AR can help industrial designers experience a product's design and operation before completion. Volkswagen uses AR for comparing calculated and actual crash test imagery. AR can be used to visualize and modify a car body structure and engine layout. AR can also be used to compare digital mock-ups with physical mock-ups for finding discrepancies between them.
Medical
Augmented Reality can provide the surgeon with information, which are otherwise hidden, such as showing the heartbeat rate, the blood pressure, the state of the patient’s organ, etc. AR can be used to let a doctor look inside a patient by combining one source of images such as an X-ray with another such as video.
Examples include a virtual X-ray view based on prior tomography or on real time images from ultrasound and confocal microscopy probes or visualizing the position of a tumor in the video of an endoscope. AR can enhance viewing a fetus inside a mother's womb. Also, patients wearing Google Glass can be reminded to take medications.
